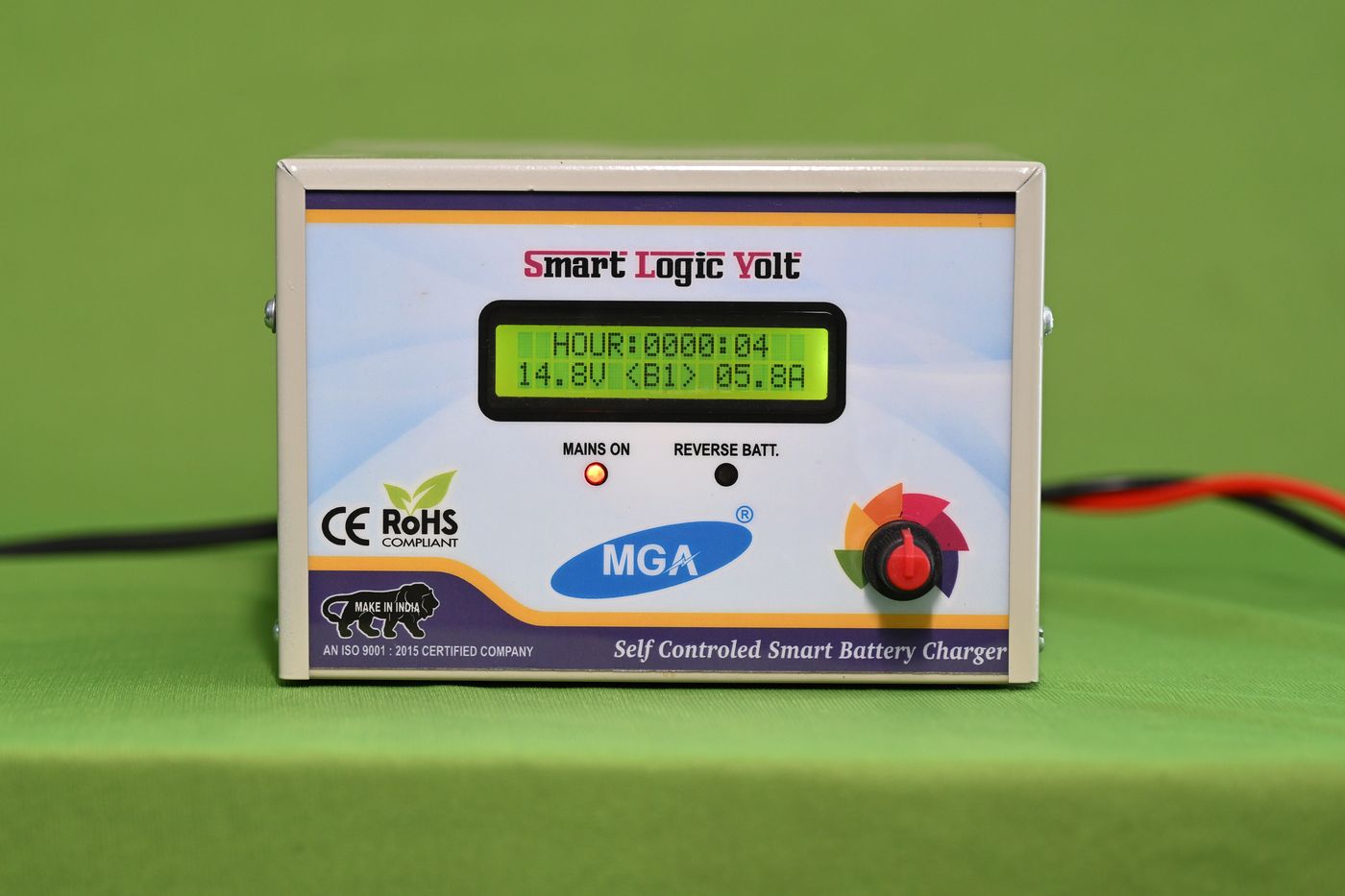

Smart Logic Volt 24V 10A

Fully automatic 12V/24V smart SMPS charger with copper coil transformer, LCD display and six potentiometer-selectable charging modes for one or two batteries.

Battery Voltage12V / 24V

Capacity30 – 150 Ah (1 battery)

Charging Modes6 (potentiometer)

InputAC 140 – 270V

Send Enquiry WhatsApp Call +91-7499394690

Overview

The Smart Logic Volt 24V 10A is a fully automatic, self-controlled SMPS smart battery charger equipped with a copper coil transformer. It provides efficient and safe charging by automatically detecting and optimizing charging parameters based on the connected battery.

Equipped with advanced self-controlling parameters and an LCD display, it ensures easy, plug-and-play operation while delivering safety and efficiency.

Product Overview

ON/OFF power switch
Charging current selection potentiometer
Display shows battery voltage, ampere, hours and battery number at once
RED cable to the battery positive (+) terminal
BLACK cable to the battery negative (−) terminal
Mains & Reverse Battery LED indicators

Key Features

Fully Automatic OperationSmartly detects and optimizes charging parameters without any manual intervention.
Six Charging ModesA physical potentiometer to manually select the charging current based on your battery's capacity (1 battery 0.5/15 A and 2 batteries 1.5/10 A).
Powerful OutputStrong output for an efficient and stable charging cycle. Perfect for batteries from 30 Ah to 150 Ah and above.
Smart LCD DisplayReal-time monitoring of hours and minutes, current charging amperes, battery number (B1 or B2), battery voltage status and self-control mode status.
Automatic Cut-OffAutomatically stops charging when the battery reaches full capacity to prevent overcharging and maintain battery health.
Reverse Polarity ProtectionA dedicated LED indicator glows in case of an incorrect connection, protecting both the charger and the battery.

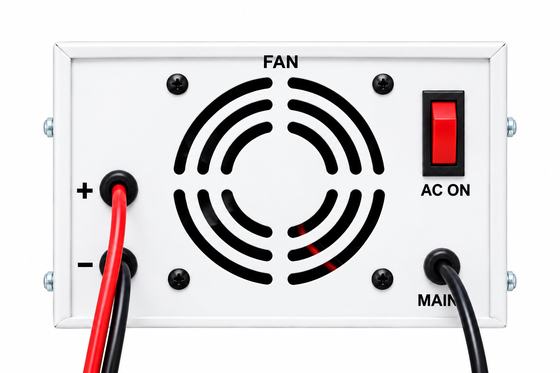

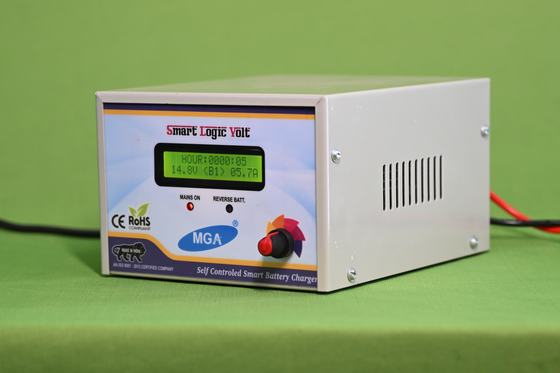

Robust DesignSide ventilation and a cooling fan for efficient heat dissipation, ensuring long product life and reliable performance.

Technical Specifications

Charger Type	Fully automatic, self-controlled SMPS smart charger with copper coil transformer
Charging Method	Constant Voltage – Constant Current
Charging Modes	Six, selected with a physical potentiometer
Charging Current	1 battery: 0.5/15 A · 2 batteries: 1.5/10 A
Supported Battery Capacity	1 battery: 30/150 Ah · 2 batteries: 15/100 Ah and above
Battery Voltage	12V / 24V
Operating Voltage	AC 140V – 270V
Boost Charge	Up to 14.5V / 29V, then normal mode
Display	LCD – total charging time (hours & minutes), charging amperes, battery voltage, number of batteries (B1/B2)
Indicators	Mains LED, Reverse Battery LED
Cooling System	Side ventilation with cooling fan
Warranty	1 year
Certifications	CE certified, RoHS compliant; ISO 9001:2015 certified company

Recommended Charging Selection – One Battery

S.No.	Colour	Switch ON	Switch OFF
1	Green	30 to 60 Ah batteries	Two-wheeler batteries
2	Yellow	60 to 75 Ah batteries	35 to 75 Ah batteries
3	Orange	75 to 90 Ah batteries	75 to 90 Ah batteries
4	Pink	90 to 100 Ah batteries	90 to 100 Ah batteries
5	Purple	100 to 120 Ah batteries	100 to 110 Ah batteries
6	Blue	120 Ah to 150 Ah and above	110 Ah to 120 Ah and above

Recommended Charging Selection – Two Batteries

S.No.	Colour	Switch ON	Switch OFF
1	Green	Two-wheeler batteries	NIL
2	Yellow	30 to 60 Ah batteries	Two-wheeler batteries
3	Orange	60 to 75 Ah batteries	30 to 60 Ah batteries
4	Pink	75 to 85 Ah batteries	60 to 80 Ah batteries
5	Purple	85 to 90 Ah batteries	80 to 90 Ah batteries
6	Blue	90 Ah to 100 Ah and above	90 Ah to 100 Ah and above

Smart Full-Charge Detection

When the battery is charged to 14.5V / 29V (or 90%), the software starts its full-charge check: instead of voltage and amperage, the screen shows S _ _ _ / S * _ _ / S * * _ / S * * * / FUL. Each software stage performs a 3-minute check, and when all three stages confirm the battery is fully charged, “FUL” is displayed and the charger automatically stops charging.

Operating Instructions (Plug & Play)

PreparationEnsure the charger is turned off and unplugged from the AC mains. Clean the battery terminals if necessary.
Select charging modeUse the potentiometer to select the charging mode based on your battery capacity.
Connect the batteryTightly connect the ends of the charger wires to the battery terminals.
Power onPlug the unit into a standard AC outlet. The Mains LED will light and the LCD will show real-time charging parameters.
Charging processThe charger automatically monitors the battery and stops charging when charging is complete (automatic cut-off).

Note: If the Reverse Battery LED lights up, immediately disconnect the clamp and correct the polarity (positive to positive, negative to negative).

Important Safety Instructions

Never ignore the Reverse Battery LED. Always ensure a proper connection.
Do not block the side ventilation slots; clear airflow is essential for heat dissipation and long service life.
Do not attempt to charge non-rechargeable or defective batteries.
Do not expose the charger to rain, moisture or excessive direct heat. Operate in a dry, well-ventilated area.

Ideal Applications

AutomotiveCar and SUV batteries
Inverter SystemsHome or office backup batteries
Solar Power SystemsSolar storage batteries
Heavy MachineryTractor and commercial truck batteries
Commercial SpacesWorkshops and professional automotive service centres

Highlights Across All Models

Auto cut-off technologyOnce the battery is fully charged, the device automatically stops charging, preventing overcharging.
Multi-stage charging (Boost and Float)When the battery level is low, it charges rapidly in boost mode. As the battery nears full charge, it shifts to float mode, which helps preserve the battery's lifespan.
Comprehensive protectionBuilt-in safety features protect against short circuits, overloads, excessive temperatures and reverse polarity (incorrect wiring).
High efficiencyReduces power consumption and provides a stable output even at low voltage (e.g. 150V AC).
Copper construction100% copper transformers, and all types of cables/wires.
