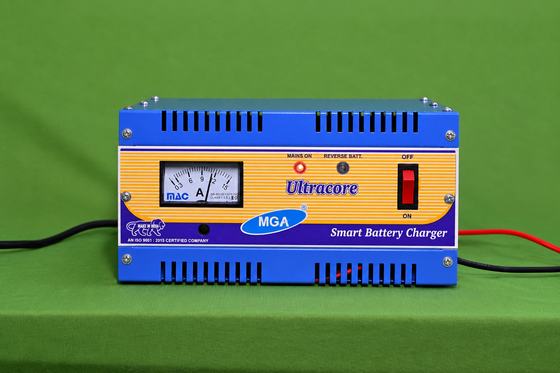

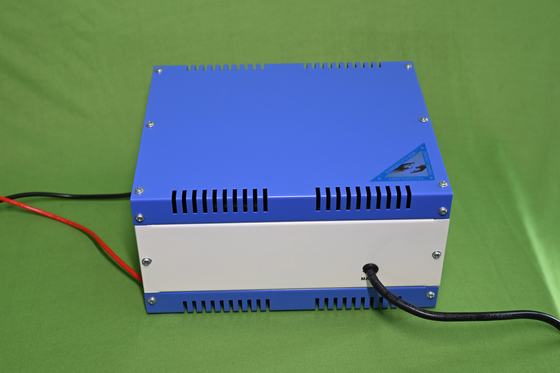

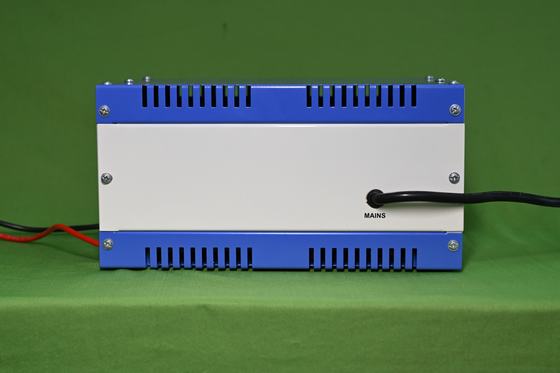

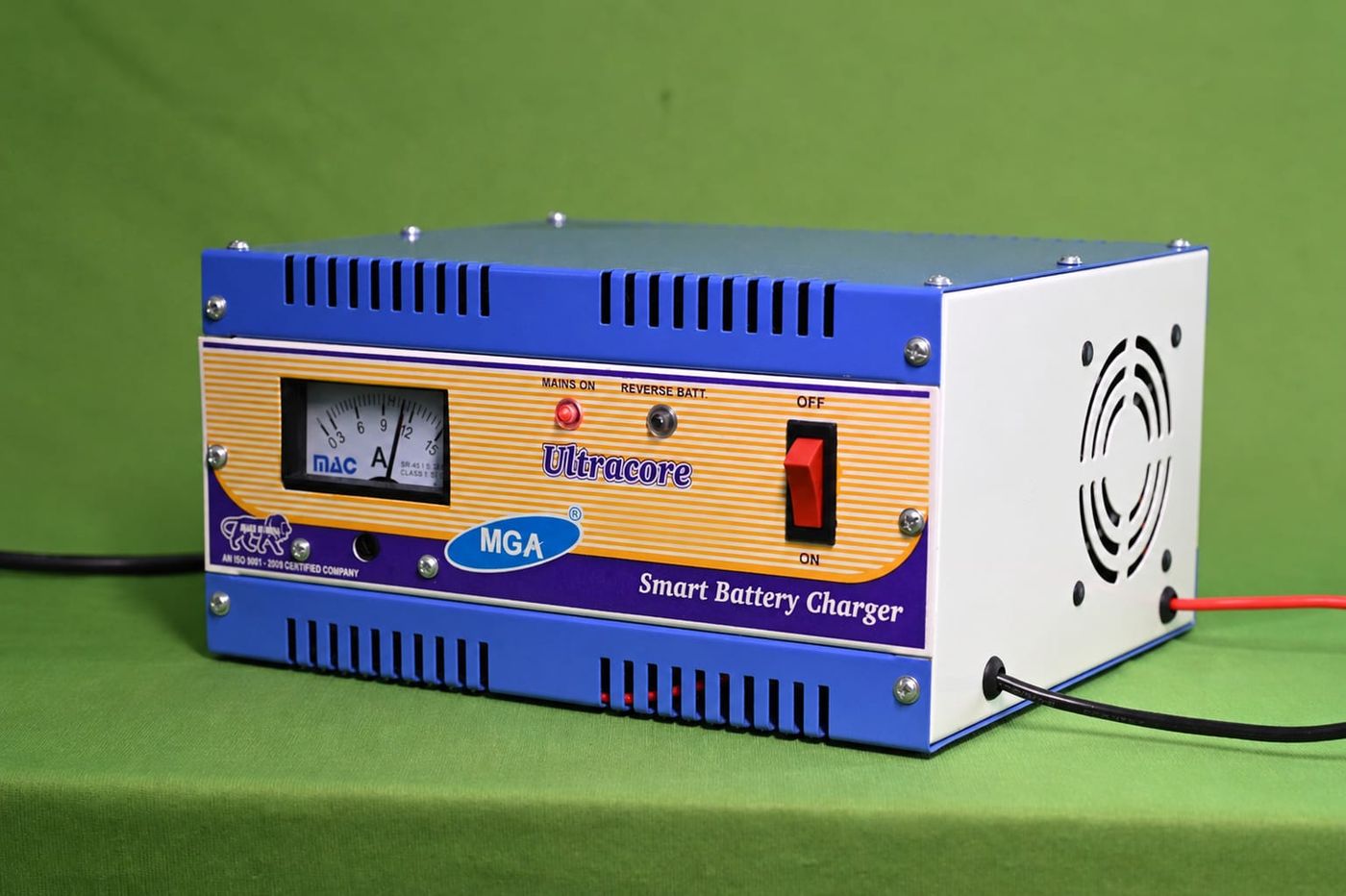

Ultra Core Battery Charger
Portable SMPS charger with copper coil transformer that charges 1 to 5 12V tubular or flat-plate batteries simultaneously, with built-in ammeter and 6–9 A control knob.
Overview
The Ultra Core automatically monitors the battery's condition and charges it optimally.
It automatically adjusts according to the battery voltage and requires no manual settings: you can easily charge 1 to 5 batteries (12-volt, each with a capacity of 60 Ah or higher) simultaneously without changing any settings.
Key Features
- A highly reliable and portable SMPS with copper coil transformer
- Automatically adjusts according to the battery voltage – no manual settings required
- Charges 1 to 5 batteries (12V, each 60 Ah or higher) simultaneously
- Built-in ammeter to monitor the charging current
- CC (Constant Current) boost charging for rapid charging of rechargeable batteries
- Tubular and flat-plate batteries can be charged at 6 to 9 amperes using the control knob
- No manpower supervision required during charging
Technical Specifications
| Technology | SMPS with copper coil transformer |
|---|---|
| Charging Method | CC (Constant Current) boost charging |
| Batteries Charged | 1 to 5 × 12V batteries simultaneously (each 60 Ah or higher) |
| Charging Current | 6 to 9 A, set with the control knob |
| Suitable Batteries | All types of tubular and flat-plate batteries, 50 Ah to 150 Ah and above |
| Monitoring | Built-in ammeter |
How to Use
- ConnectConnect the red wire to phase and the black wire to neutral. Securely connect the battery wires to the (+) and (−) terminals.
- Set the knobSet the charging knob to the minimum level.
- Switch onTurn on the charger's AC mains switch; the meter displays the amperage. Adjust the charging amperage to your requirement to charge 1 to 5 batteries (12V).
Applications
- Car
- Jeep
- Tractor
- Generator
- Truck
- Agricultural vehicle
Highlights Across All Models
- Auto cut-off technologyOnce the battery is fully charged, the device automatically stops charging, preventing overcharging.
- Multi-stage charging (Boost and Float)When the battery level is low, it charges rapidly in boost mode. As the battery nears full charge, it shifts to float mode, which helps preserve the battery's lifespan.
- Comprehensive protectionBuilt-in safety features protect against short circuits, overloads, excessive temperatures and reverse polarity (incorrect wiring).
- High efficiencyReduces power consumption and provides a stable output even at low voltage (e.g. 150V AC).
- Copper construction100% copper transformers, and all types of cables/wires.
